UltraStudio for Thunderbolt

The world’s most flexible Thunderbolt capture and playback solutions

UltraStudio for Thunderbolt

Connect UltraStudio to professional equipment with virtually any type of video and audio connection available, as well as professional RS‑422 deck control, external reference inputs and more! UltraStudio features advanced SDI video connections, the standard for today's post production and broadcast equipment. UltraStudio includes HDMI, analog component, S‑Video and composite connections which means that you can connect to a range of older professional and consumer equipment. Work with the widest range of monitors, switchers, routers, broadcast decks and more.

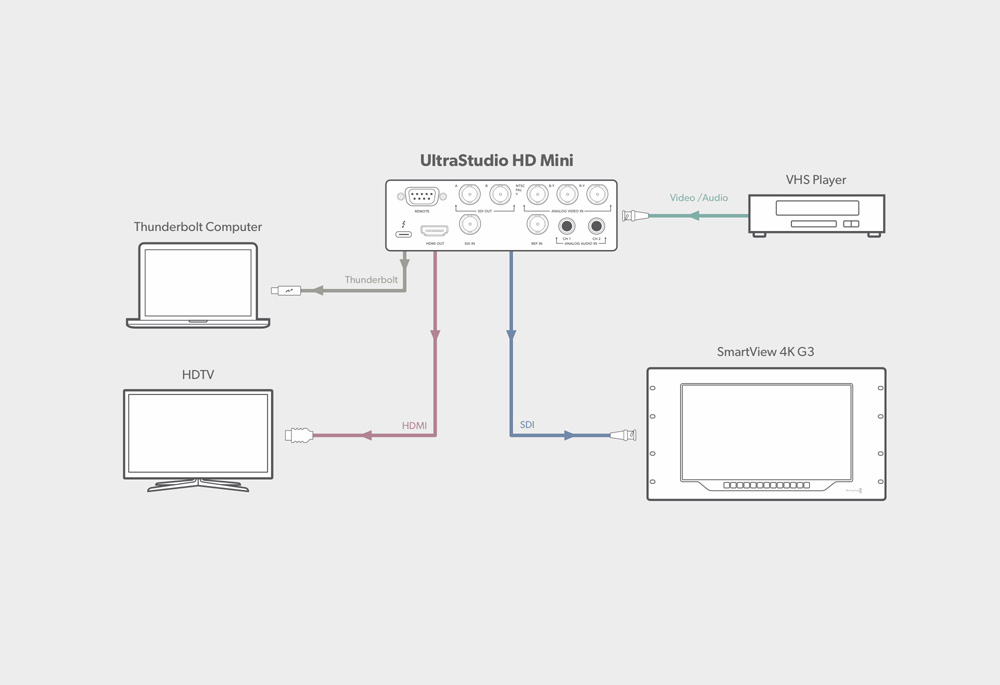

Connecting to Decks and Monitors

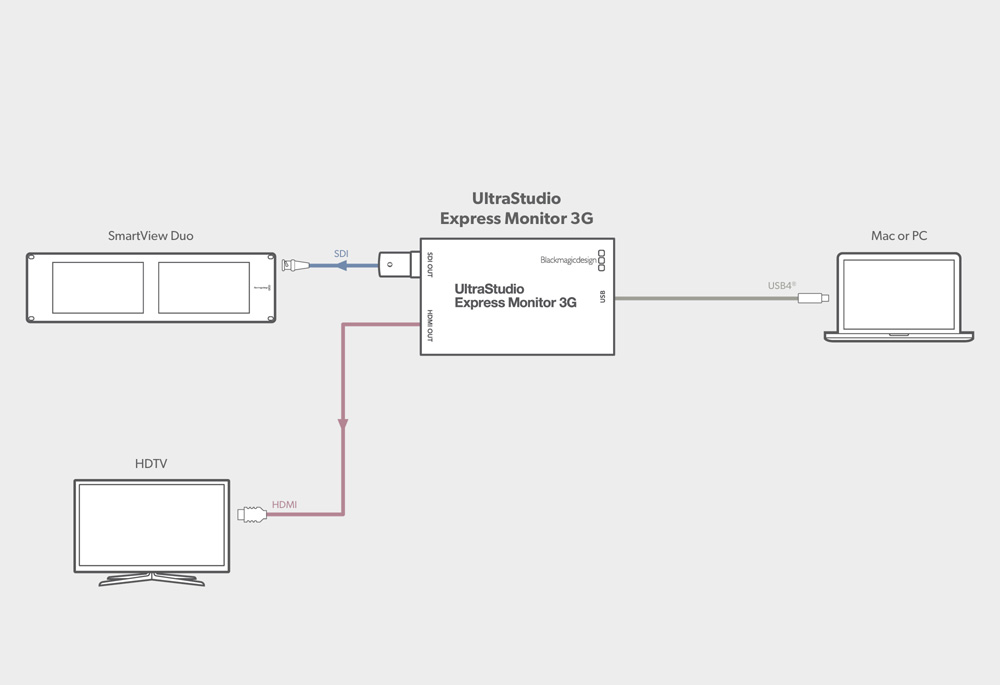

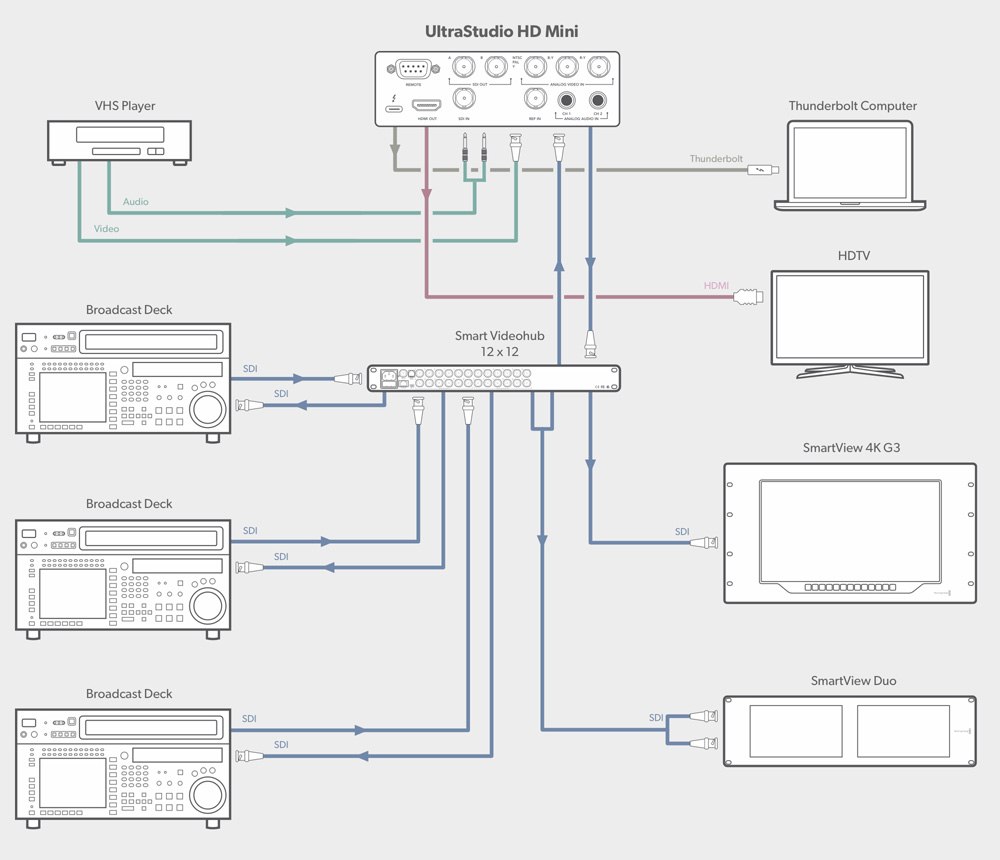

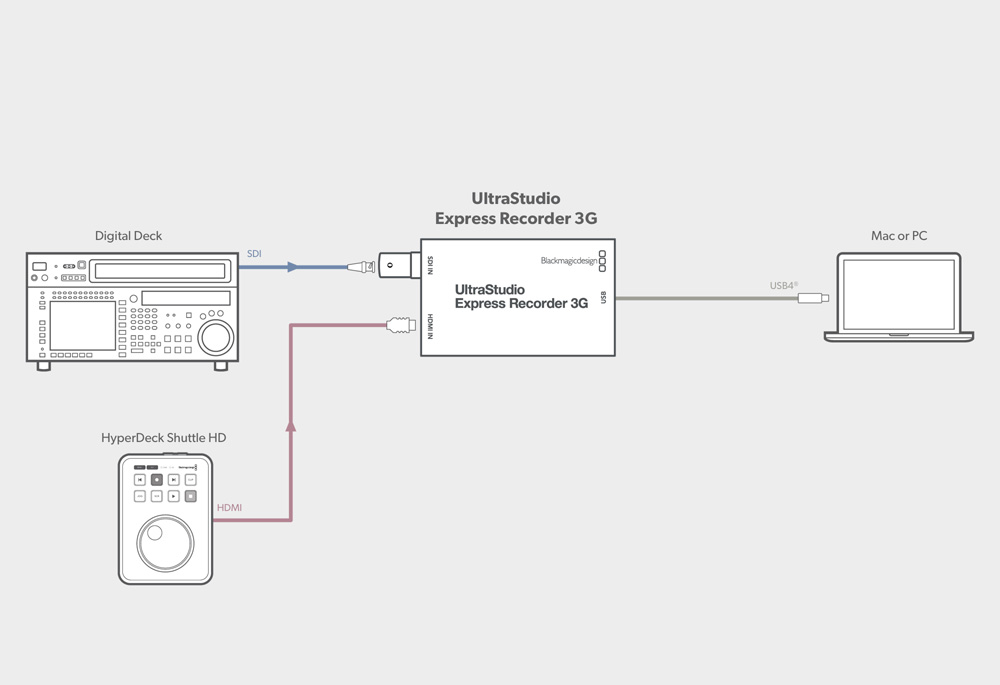

With UltraStudio you can be assured you have every kind of connection, quality, file format and software compatibility you need for any task! Connect virtually any professional or consumer analog video device or deck. Simply plug into the SDI connections for digital decks such as HDCAM, HD‑D5, HDCAM SR and even standard definition Digital Betacam! If you're connecting to older decks such as Betacam SP, then you can use the component analog connections on UltraStudio to plug in direct using the component analog video connections and balanced analog audio. You even get composite for connecting to old VHS decks! UltraStudio has both SDI and HDMI connections, so it's perfect for connecting to broadcast monitors and video projectors for massive cinema style monitoring!

Connecting to Routers

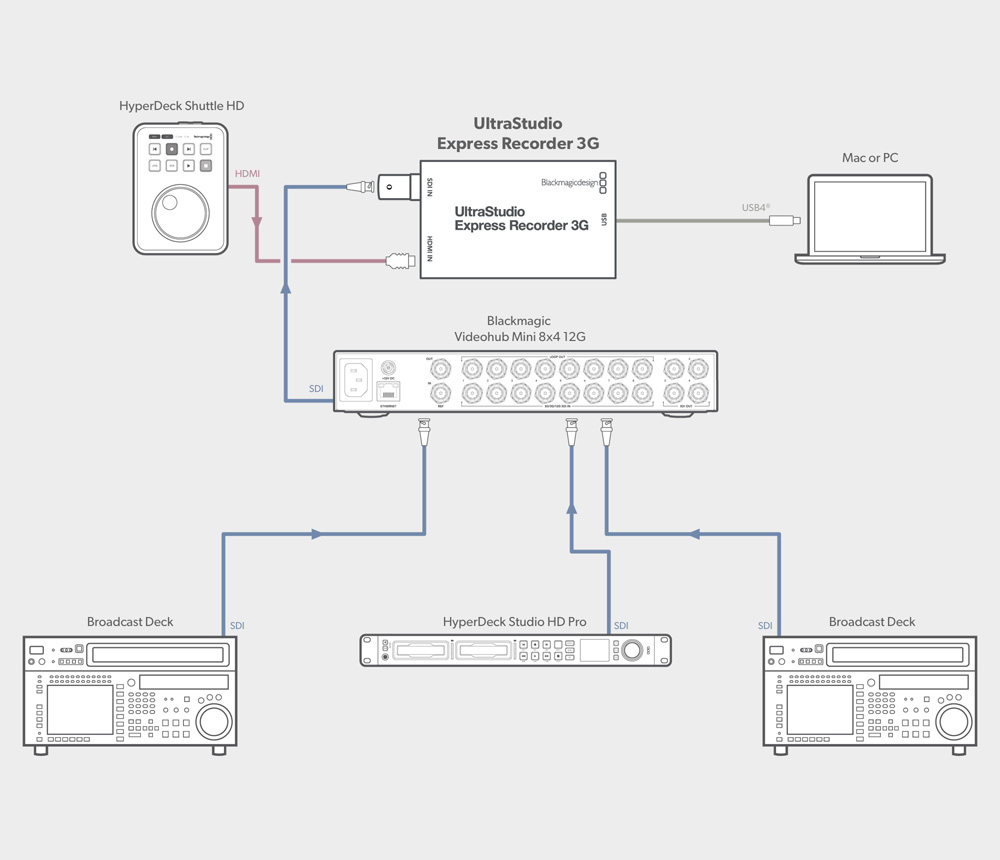

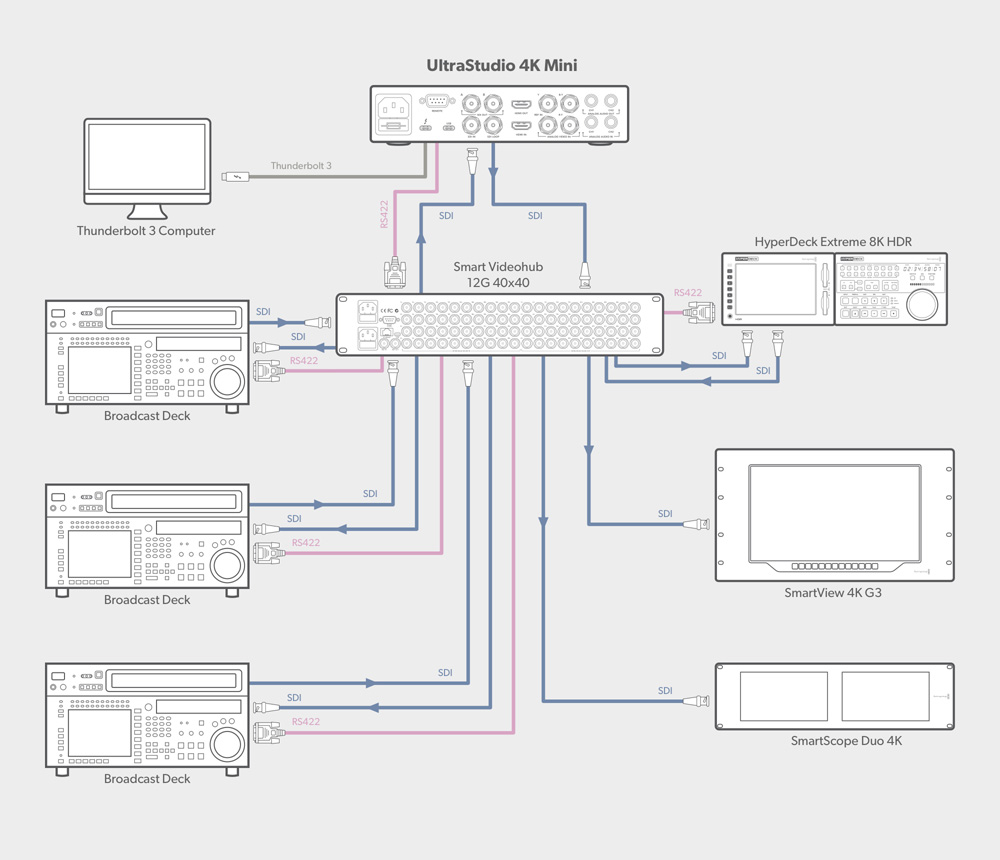

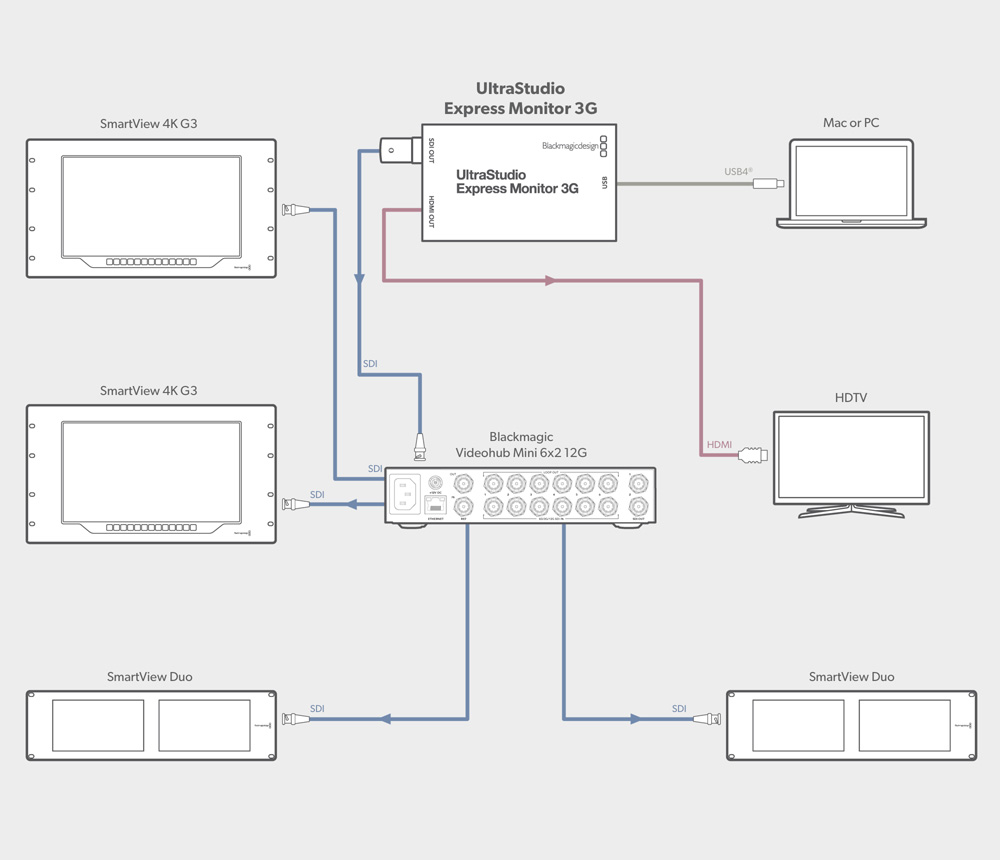

UltraStudio is perfect for use with routers because they include support for video, multi channel audio, timecode and closed caption data all down the single SDI cable. This saves costs on installing multiple routers because a single SDI router can handle all of the signal types. UltraStudio supports built in down conversion so you can send feeds to systems that run separate SD and HD routers. The multi rate SDI connections also support newer router designs such as Blackmagic Design's Videohub range that allows multiple video formats on the same router at the same time.

Connecting to Live Production Switchers

Connecting to Live Production Switchers

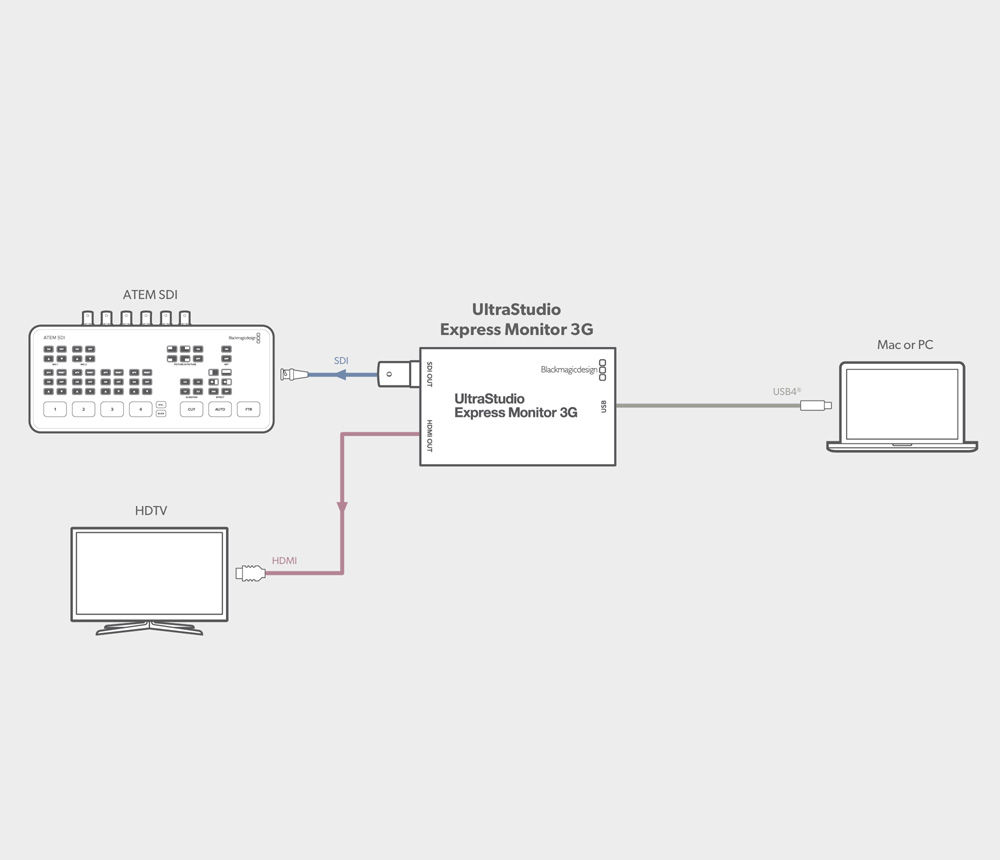

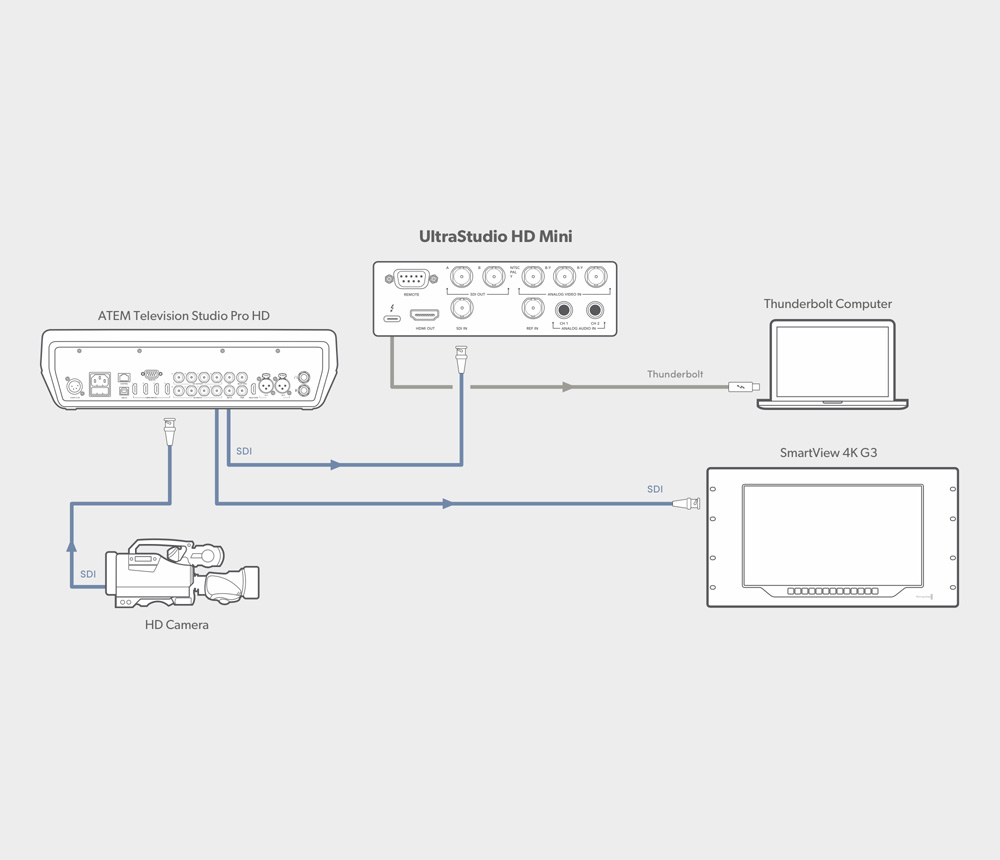

Connecting to live production switchers is easy. If you're using UltraStudio as a media player then you can run title software or animations in RGB using the UltraStudio 4K model and output fill and key on the dual link SDI outputs. Each link can be connected to two switcher inputs and the server can use the fill and key internally to key these graphics live. The included Photoshop CC plug-in also supports RGB graphics and alpha channels in your Photoshop CC graphics so you can update titles instantly for urgent on air graphics. UltraStudio is perfect for live streaming production switcher program outputs, simply connect the switcher program or aux output to the UltraStudio input and run your favorite streaming software.

Next Page - Tech Specs

Next Page

Tech Specs

Learn more about Tech Specs Arrow

UltraStudio

New
UltraStudio Recorder 3G

UltraStudio Recorder 3G

Great for streaming and capture from any HDMI or SDI broadcast quality video source, UltraStudio Recorder includes 3G-SDI and HDMI in all formats up to 1080p60.

US$135

Buy Now
New
UltraStudio Monitor 3G

UltraStudio Monitor 3G

The perfect solution for edit monitoring on large screen TV's, projectors or broadcast monitors! UltraStudio Monitor for SDI and HDMI includes 3G-SDI and HDMI in all formats up to 1080p60.

US$135

Buy Now
UltraStudio HD Mini

UltraStudio HD Mini

All in one HD capture and playback in a compact 1/3rd rack width design. Powers from Thunderbolt 3 and includes deck control and reference. Supports 3G‑SDI and HDMI, plus upgradable front panel LCD.

US$589

Buy Now
UltraStudio 4K Mini

UltraStudio 4K Mini

Powerful capture and playback! Get 12G‑SDI and HDMI for Ultra HD up to 2160p60 in a half rack width design. Includes front panel with LCD, menus, mic input, headphone connection and SD card reader.

US$1,145

Buy Now
UltraStudio 4K Extreme 3

UltraStudio 4K Extreme 3

Incredibly powerful capture and playback in a 2 rack unit break out box design. Includes every connection possible including 12G‑SDI, HDMI, YUV/composite video, analog/digital audio and much more!

US$3,485

Buy Now
Blackmagic PCI Express Cable Kit

Blackmagic PCI Express Cable Kit

High speed Generation 3 PCI Express plug-in card and cable for connecting computers to products such as UltraStudio 4K Extreme 3, when you need higher speeds than Thunderbolt.

US$289

Buy Now
Teranex Mini Smart Panel

Teranex Mini Smart Panel

The easy to install Teranex Mini Smart Panel gives you enhanced push button controls and a built in LCD screen on the front panel so you can see your video and monitor that your audio levels are correct!

US$105

Buy Now
Blackmagic Universal Rack Shelf

Blackmagic Universal Rack Shelf

Build a custom 1RU solution with Blackmagic Universal Rack Shelf. Mix and match 1/3 and 1/2 rack width Studio Converter, ATEM, HyperDeck Studio, Web Presenter, Teranex Mini and UltraStudio products.

US$99

Buy Now
