Introducing UltraStudio 4K Extreme 3
Built with blazingly fast Thunderbolt, UltraStudio lets you work with the highest quality video resolutions all the way up to Ultra HD and DCI 4K! Choose from a range of rack mount and portable UltraStudio for Thunderbolt models featuring SDI, HDMI and analog video connections. UltraStudio works with all your favorite video software such as DaVinci Resolve, Final Cut Pro, Avid Media Composer and Adobe Creative Suite. UltraStudio is QuickTime and WDM based and work with any Mac OS X and Windows video software!
UltraStudio for Thunderbolt models are perfect for high performance work that demands the highest quality. Using a single Thunderbolt cable, you can easily connect any Thunderbolt computer or laptop for amazing on set color correction, editing, visual effects and video streaming. Lightweight and compact, UltraStudio HD Mini and UltraStudio Mini models are extremely portable, easily moving from one computer to another. UltraStudio 4K models are high performance 'break out box' style capture and playback devices for the highest quality Ultra HD 60p editing as well as DCI 4K resolutions!
UltraStudio 4K models have a rack based ‘breakout box‘ design with the latest high performance 6G and 12G-SDI video technology, and are perfect for equipment racks, post production suites or flyaway kits! UltraStudio HD Mini features Thunderbolt 3, as well as built in SDI and analog component and composite inputs, reference, and RS-422. You also get dual link 3G-SDI with simultaneous fill and key output, as well as HDMI. UltraStudio Mini Recorder and UltraStudio Mini Monitor include SDI and HDMI connections and are great when you require either capture or playback in SD or HD. UltraStudio HD Mini and UltraStudio Mini models are Thunderbolt powered so you just plug in and go!
When you need the ultimate capture and playback solution then UltraStudio 4K Extreme is the perfect choice as it’s the most powerful video capture and playback product available. It features the latest, most advanced 12G-SDI and HDMI 2.0 connections for working with high frame rate 60 frames per second, deep 12-bit color images at massive 4K resolutions! The built in hardware encoder can convert video in realtime to H.265, which is the distribution format for Ultra HD. It also includes a wider range of analog and digital connections than any other UltraStudio model so it can be used with virtually any camera, deck, router or display. For even higher performance, the UltraStudio 4K Extreme 3 model has all the same powerful features of UltraStudio 4K Extreme, but also features the latest high speed Thunderbolt 3 connection for transfer speeds of up to 40 Gb/s over a single cable!
The UltraStudio 4K Extreme models feature a built in multi format hardware encoder that lets you capture to H.265. H.265 delivers amazing quality and is the compression standard for distributing Ultra HD content online. You can also use H.265 compression for SD and HD video giving you smaller files at higher quality than other compression formats. The built in hardware encoder is designed to be upgradable so you get a future proof solution that can add new formats via software updates as they become available.
With UltraStudio you can connect to virtually any video device, including cameras, monitors and broadcast decks for frame accurate editing and recording!
UltraStudio Mini models are ideal when space is tight and you require only capture or playback. UltraStudio Mini Recorder features 1.5G-SDI and HDMI input and UltraStudio Mini Monitor features 1.5G-SDI and HDMI outputs.
UltraStudio HD Mini includes 3G-SDI, analog YUV and composite NTSC/PAL video inputs, two channel analog audio in, and reference as well as RS-422 for deck control! For output, you get dual link 3G-SDI with simultaneous fill and key, plus HDMI. UltraStudio Mini also features Thunderbolt 3 so you get incredible 40 Gb/s performance for capture and playback of fully uncompressed video, leaving your computer’s CPU free for more processing tasks.
UltraStudio 4K has 6G-SDI, HDMI 1.4, analog component video, 16 channels of SDI audio, 2 channels of balanced analog, 2 channels of unbalanced AES/EBU audio, timecode, up/down/cross conversion, reference and serial deck control.
UltraStudio 4K Extreme features 12G-SDI with loop outputs for working with 2160p60 over a single cable. Also includes HDMI 2.0, analog component, 4 channel XLR analog and 2 channels AES/EBU digital audio, timecode, reference and serial deck control. Connects via Thunderbolt or with an optional PCI Express adapter for higher frame rates and 4K RGB workflows. UltraStudio 4K Extreme 3 has all the same powerful features of UltraStudio 4K Extreme, but adds the latest high speed Thunderbolt 3 connection for transfer speeds of up to 40 Gb/s.

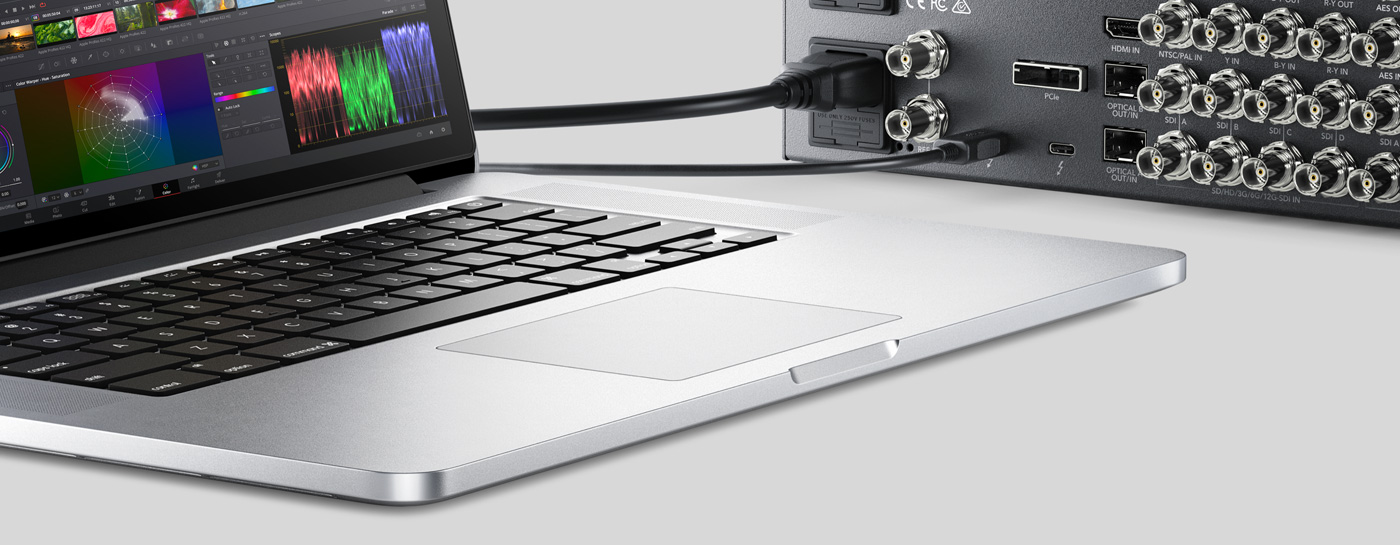

Built on revolutionary Thunderbolt™ technology, UltraStudio uses a blazingly fast single cable connection to your computer that has the bandwidth to handle the highest resolution video formats easily! Thunderbolt ensures low latency and highly accurate time synchronization for the highest quality capture and playback. UltraStudio HD Mini and UltraStudio Mini models are powered via the Thunderbolt connection so they are extremely portable. The high performance UltraStudio 4K and UltraStudio 4K Extreme models feature double speed Thunderbolt 2 with loop thru and 6G-SDI or 12G-SDI. UltraStudio HD Mini and UltraStudio 4K Extreme 3 both feature an incredibly fast, 40Gb/s Thunderbolt 3 connection,which makes UltraStudio 4K Extreme 3 ideal for demanding 3D stereoscopic workflows, Ultra HD and DCI 4K.
UltraStudio 4K supports popular compressed video formats such as ProRes and DNxHD as well as 10-bit uncompressed video, so you’re not locked into a single file format. When working with uncompressed video all captured images are a perfect pixel-for-pixel clone of the source without any quality loss, so you have the confidence you’re working at the absolute highest quality possible. Get the sharpest keying with green screens, cleanest compositions, superior color correction and more! Ultra HD 4K has 4 times the resolution of 1080HD for amazing looking images!
UltraStudio 4K features 6G-SDI so you get full compatibly with all your SD, 720p and 1080HD equipment up to 60 fps, plus you can instantly switch to Ultra HD up to 30 fps! That’s an incredible range of video formats with a single regular BNC SDI connection! Because the 6G-SDI connections are multi rate, they can switch between 270 Mb/s, 1.5 Gb/s, 3 Gb/s and 6 Gb/s data rates for compatibility with your existing SD, HD or Ultra HD equipment.
UltraStudio 4K Extreme models feature the latest 12G-SDI technology, making it the world’s most powerful video capture and playback solution! The incredible speed of 12G-SDI means UltraStudio 4K Extreme can support both capture and playback of Ultra HD and 4K 60p over a single BNC cable! Because the 12G-SDI connections are multi rate, you can still connect to all your existing equipment. Only 12G-SDI gives you the compatibility to connect to all your existing SD and HD equipment but also supports the future with all Ultra HD formats up to 2160p60. UltraStudio 4K Extreme even supports dual link 12G-SDI so you can do stereoscopic and simultaneous fill and key all in real time!
UltraStudio 4K’s elegant front panel has an integrated color LCD and fast to use video and audio input buttons, all with built in video and audio connections using standard BNC, HDMI and XLR connectors. UltraStudio HD Mini is designed for portability and fits in ⅓ of a standard rack so it can be mounted with other equipment, or used stand alone on the desktop! With a a wide range of connections, it’s perfect to take on the road. UltraStudio Mini models fit into the palm of your hand and feature SDI and HDMI connections at one end and a Thunderbolt connection at the other!
Learn more about Design
Learn more about Workflow
Learn more about Software
Learn more about Installation
Learn more about Tech Specs
Thunderbolt or Thunderbolt 2 solution, with Dual Link 6G-SDI, HDMI, Analog, 4:4:4, 3D, Ultra HD and 4K.
Thunderbolt and PCI Express solution, with 12G SDI, HDMI 2.0, Analog, 4:4:4, Ultra HD and 4K up to 2160p60 and hardware encoder for H.265.
Advanced 40Gb/s Thunderbolt 3 and PCI Express solution with 12G SDI, HDMI 2.0, Analog, 4:4:4, Ultra HD and 4K up to 2160p60 and hardware encoder for H.265.
High speed Generation 3 PCI Express plug-in card and cable for connecting computers to products such as UltraStudio 4K Extreme 3, when you need higher speeds than Thunderbolt.
Portable Thunderbolt 3 solution with 3G-SDI, HDMI and analog connections for incredible broadcast quality 10 bit recording of video formats up to 1080p60 and 2K DCI.
The easy to install Teranex Mini Smart Panel gives you enhanced push button controls and a built in LCD screen on the front panel so you can see your video and monitor that your audio levels are correct!
The UltraStudio HD Mini is the same physical size as Teranex Mini converters so you can use the Teranex Mini Rack Shelf to rack mount up to 3 modules in any combination you need! That’s perfect for studios, broadcast trucks, mini racks and more!
Ultra small pocket sized Thunderbolt powered recording from SDI and HDMI.
Ultra small pocket sized Thunderbolt powered playback for SDI and HDMI.
