Miniaturized Design

Compact design can be used on the desktop or rack mounted!

ATEM Television Studio HD Design

ATEM Television Studio HD has the same high quality broadcast features as the world's best switchers, all miniaturized into an elegant, compact design that gives you complete control from the front panel! The Teranex Mini based form factor can be used stand alone on the desktop or it can be installed in equipment racks using the Teranex Mini Rack Shelf. Because it only uses ⅔ of the rack shelf, you still have space for additional devices. With ATEM Television Studio HD you simply get more creative features than any other production switcher, in a compact design that’s super portable!

Find Reseller
Front Panel

Front Panel Control

Control the switcher directly from the front panel

With ATEM Television Studio HD you don’t need extra hardware or computers to run the switcher, because it’s been designed to be operated directly from the front panel! The high quality illuminated buttons, bright LCD screen and spin knob give you access to all switcher features. You get source buttons, program and preview output, cut, media pool, fade to black, audio, aux output, and much more! You can even add effects, graphics, and create picture in picture effects, all right from the front panel!

Source Buttons

Source Buttons

The 8 illuminated buttons for each input show red when the source is on air and green when selected on preview. Use the cut button for instant switching or the auto button to use transitions such as a wipe, dissolve or DVE transition.

Audio Controls

Audio Control

There are two buttons and audio meters on the front panel for each input. The on button lets you add any source’s audio to your program, even when another video source is live. The AFV buttons let the audio follow video as you switch between sources.

Buttons

Downstream Keyer

The DSK 1 MIX button is used to key graphics with alpha channels over source video using a nice smooth transition.

Fade to Black

The FTB button is ideal for the start and end of your program because it immediately fades all video to black.

Media Players

The MP1 and MP2 buttons are used to recall any of the graphic files stored in the media pool so you can quickly switch between stills and source video.

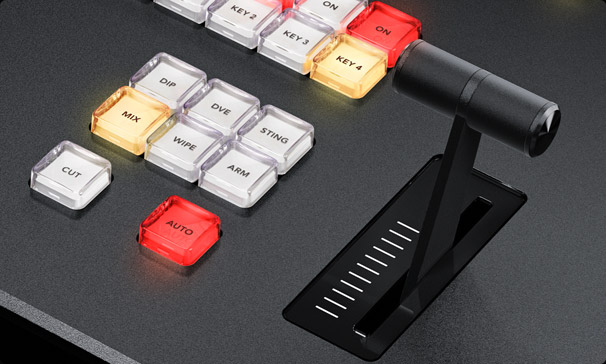

Cut and Auto

The cut button is used to switch cleanly between sources, while the auto button switches using a transition.

Bright LCD Screen

Bright LCD Screen

Monitor video, audio levels and see the current audio level being adjusted. The LCD also has menus for all switcher settings.

Menu Buttons and Spin Knob

Menu Buttons and Spin Knob

The spin knob control, menu and set buttons work together with the LCD to give you fast access to all switcher settings, graphics in your media pool, aux output settings, transitions and effects, and more.

Professional Connections

Professional Connections

Connect to both broadcast systems or consumer cameras

ATEM Television Studio HD uses industry standard BNC connections for SDI video and XLR connections for analog audio input. You get robust, broadcast quality connections that maintain signal quality and are designed to support years of reliable operation. For compatibility with consumer cameras and computers, the built in HDMI connections eliminate the need for cumbersome external converters. You also get Ethernet for remote software control or to connect hardware controllers, RS-422 deck control and a built in IEC power supply.

Professional Connections

Source Inputs

There are 4 HDMI and 4 SDI inputs for connecting up to 8 cameras, computers, gaming consoles, or other sources. All inputs can switch between NTSC/PAL and 720p, 1080i and 1080p HD formats up to 1080p60!

HDMI Inputs

Four HDMI inputs let you connect and use virtually any consumer HD or DSLR camera, along with computers and even video game consoles.

SDI Inputs

The four 3G-SDI inputs are multi rate so they work with all professional SD and HD broadcast cameras and can run much longer distances than HDMI.

Ethernet

For connecting to computers or hardware control panels.

RS-422

Supports PTZ camera control or GVG protocol switcher remote control.

Talkback Outputs

Four 3G-SDI program return feeds send talkback, tally and camera control information back to professional cameras. These talkback outputs also feature mix minus.

Professional Connections

Aux Output

A separate SDI output that you can connect to video projectors or recorders and route any switcher source to, even clean feeds for recording masters without graphics and overlays.

Multi View Outputs

SDI and HDMI multi view outputs let you see every source, along with preview and program output, labels, audio meters and more, on the same screen at the same time.

Reference Input

The SDI reference input is for synchronizing ATEM Television Studio HD into large broadcast systems.

Program Output

Main SDI program output for sending your live program to devices such as monitors, decks, streaming processors or duplicators.

Audio Inputs

Two XLR audio inputs let you connect balanced or unbalanced analog sources.

Power

Built in 100-240V power supply with standard IEC connection for worldwide compatibility.

Revolutionary Modular Design

Designed to fit in 2/3 of a single rack space with other equipment!

ATEM Television Studio HD is only about 11” inches wide, or ⅔ of a single rack unit space! That means you’ll have room left over to mount it side by side with additional equipment to create your own customized setup. For example, you can mount it next to additional Teranex Mini converters, a HyperDeck Studio Mini, a Blackmagic Web Presenter or more!

Revolutionary Design

HyperDeck Studio Mini

HyperDeck Studio Mini is ideal for recording the final program output from your ATEM Television Studio HD. You can even use it as a source to provide fill and key graphics to your switcher or use them as ISO recorders for each camera!

Learn More >

Revolutionary Design

Blackmagic Web Presenter

The Blackmagic Web Presenter takes the SDI program output from your ATEM Television Studio HD and lets you broadcast your live program to millions of viewers through services such as YouTube Live, Facebook Live and more!

Learn More >

Revolutionary Design

Teranex Mini SDI Distribution 12G

When used with a Teranex Mini Distribution 12G, you can take the SDI program or aux output from your ATEM Television Studio HD and send it to multiple devices like decks, projectors, or even massive digital displays on stage!

Learn More >

Learn more about Features

Learn more about Software

Learn more about Hardware

Learn more about Tech Specs

ATEM Television Studio HD

ATEM Television Studio HD

ATEM Television Studio HD - $995

The world’s first live production switcher for broadcast, professional and AV users with HDMI and SDI inputs, multi view, talkback, DVE, audio mixer, flash media players and more!

$995 Buy Now
